Description:

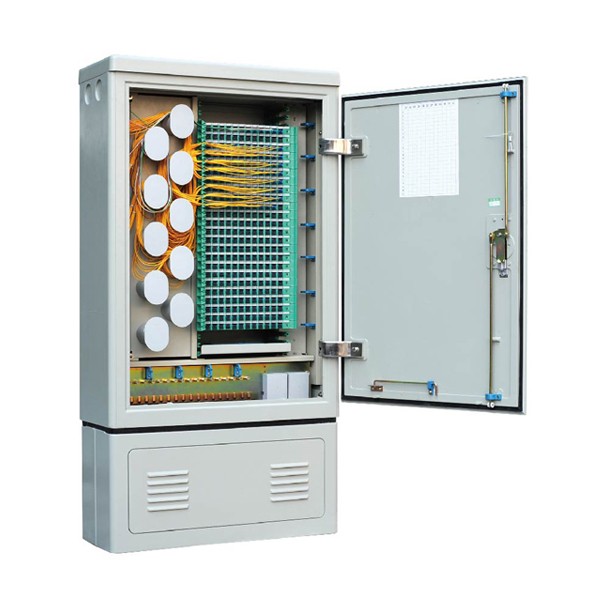

FTTH Street Cabinet provides reliable solutions for fiber optic cable interconnect and cross connect and fiber cable management in FTTX PON system. FTTH Street Cabinet offers a robust and expandable solution for connecting feeder cables and distribution cables in FTTX FTTH network. The fiber optic network for the use of FTTH Street Cabinet could be P2P (point-to-point) and P2MP (point-to-multipoint) Passive Optical Network.
Features:
· Specialization: Technical professionals and production/testing equipment ensure excellent product performance.
· Standardization: We strictly follow industry standard and actively participate in the modification of industry specifications.
· Innovation: For 12 fibers Splice and Distribution Integrated Trays and outdoor cross-connect cabinet, we improve our products according to customers’ needs.
· Humanization: Products have humanized management and operation, and detail-orientation. The components of the cabinet are formed by using arc shaping mold with its surface electrostatic spraying.
· Systemization: Products of various capacities can meet multiple application requirements. We also offer optical accessories for outdoor cross-connect cabinet, patch cords, pigtails, adaptors, splitters for example, and provide turnkey solutions for the installation, splicing, and testing.
· Modular design: 12 fibers Splice and Distribution Integrated Trays and splitter trays are adapted for easy installation and maintenance. All components are in the form of modules to achieve a flexible configuration. Components of different models are interchangeable, which shortens delivery time, reduces costs, and simplifies installation and maintenance.
Specifications:
Housing Material | SMC |
Splice and Distribution Tray Capacity | 12 pieces of SC, FC or ST adaptors (12 fibers); 12 pieces of duplex LC adaptors (24 fibers); |
Splice and Distribution Tray Quantity | 48 pieces max. |
Applicable Adaptor | SC, FC (duplex LC or ST is optional) |
Adaptor Quantity | 576 pieces max. |
Direct Splice Capacity | 96 fibers, 24 fibers/tray (can be specified) |
Installation Method | Floor standing |
Applicable Environment | outdoor |
Protection Grade | IP65 |
Color | gray |
Net Weight | front and back doors type: 99.5kgs; two front doors type: 116kgs |
Dimension (H×W×D) | front and back doors type: Cabinet: 1100×750×540mm; base: 350×750×540mm two front doors type: Cabinet: 1200×1460×360mm; base: 350×1460×360mm |
Technical Parameters:
Fiber Bending Radius | >37.5mm (protective tubes are furnished for fibers passing through metallic holes.) |
Cable Bending Radius | >15 times of cable diameter |
Nominal Working Wavelength | 850nm, 1310nm, 1550nm |
Insertion Loss | ≤0.2dB |
Return Loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
Durability | >1,000 times |
Insulation Resistance | ≥1,000MΩ/500V(DC) |
Voltage Resistance | ≥3,000V(DC), 1 min no puncture, no arc-over |
Vertical Pressure | >980N |
Atmospheric Pressure | 70~106KPa |
Relative Humidity | ≤95% (+40°C) |
Operating Temperature | -40°C~+60°C |
Storage Temperature | -40°C~+60°C |
