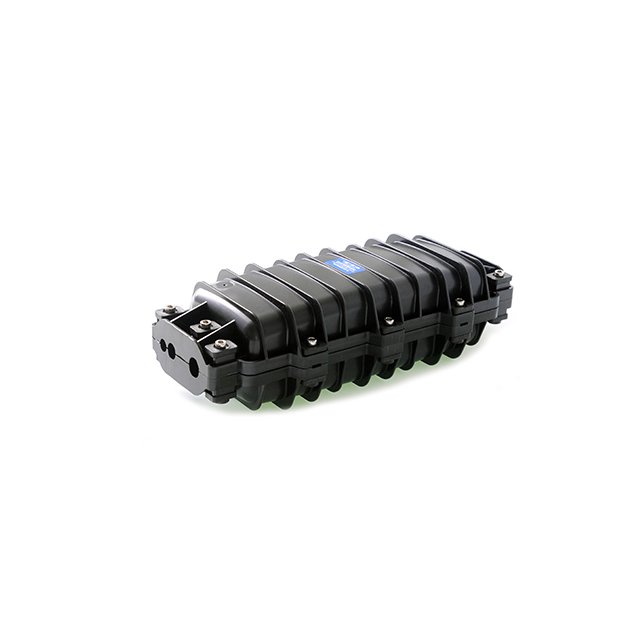

Fiber Optical Splice Closure (FOSC)
FOSC is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.
Specification
Material |
Size |
Max Capacity |
Cable Entrance |
Sealing Mechanism |
Weight |
Color | |
Polycarbonate (Strengthen PC) | L*W*H(mm) 396*200*125 | Splice Cores 96 Cores | Trays 12F/24F | 6 portsx20mm 3 in 3 out | Mechanical sealing with thermoplastic rubber |
2.8kg |
Black |
Features
Half design with mechanical sealing structure .
High quality industrial plastic body material
6 round holes for cable entrance,,3 in 3 out.
Suitable for cable diameter 8mm-20mm
Support aerial,underground,pipeline,man holes,hand holes
Protection level reaches IP68
Replaceable high quality rubber seal for repeatedly opening.
Maximum capacity: 96 fibers.
Number of splice trays: 4 pcs x 24F
Application:
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole. The ambient temperature ranges from -40 to +65℃.
